DOUBLE-END TENONER

Suitable for board type furniture, hutch ark door, etc;

Frequency control of motor speed, high precision conveyor chain rolling guide feed system;

Active on pressure strip, with electric lift;

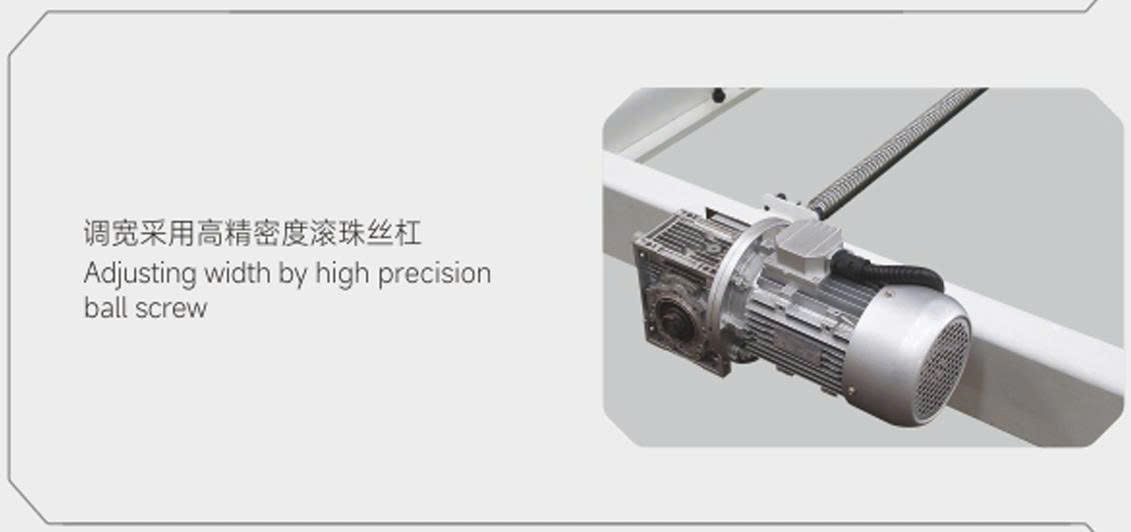

Double linear guide, ball screw motor adjustable wide;

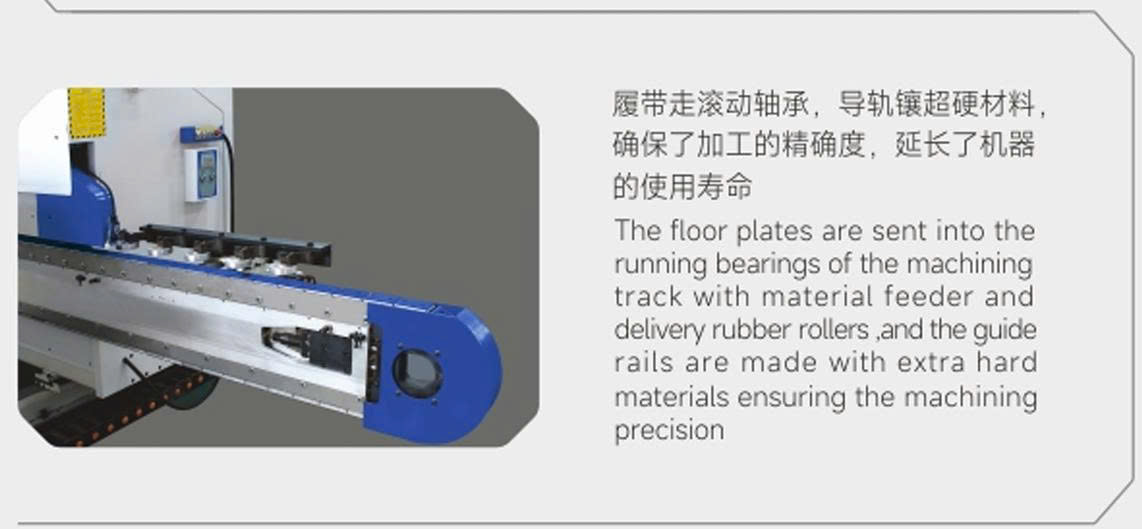

1. The floor plates are sent into the running bearings of the machining track with the material feeder and delivery rubber rollers, and the guide rails are made with extra hard materials, ensuring the machining precision.

2. With the imported PLC and the frequency conversion device, the double-end miller works very smooth.

3. Forcefully feeding decelerator features speed regulation by frequency inverter

4. With the built-in cleaning brush wheel, the dust inside the track guide rail can be cleaned automatically.

5. With the compact sawing shaft mechanism, the cutters are closed to the pressing belt, ensuring the machining stability.

6. Structure acting as ball-screw makes machine have more accurate adjustment.
