Worktable surface with hard chrome plating: smooth and wear-resistant.

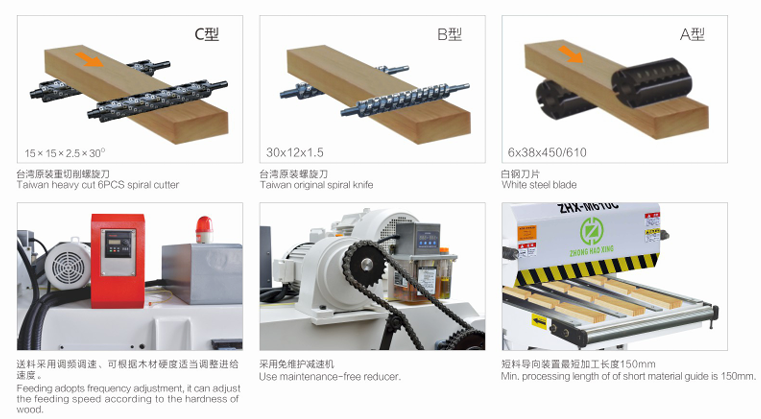

Equipped with Taiwan heavy-duty spiral cutter 15×15×2.5×30°.
Digital input control for easy operation, with backup electric blade lifting.
Rear platen roller design ensures smooth feeding.
Upper horizontal knife with front infeed roller ensures smooth feeding regardless of workload.
With short-material guiding device, minimum processing length is 150mm.
Lower horizontal knife shaft with axis limit prevents misalignment after blade replacement.
Lifting system uses dual-position switch to prevent tool shaft from dropping in case of stroke switch failure.
Oil pump alarm light automatically turns on when oil runs out and turns off after refueling.
Feeding speed is stepless and adjustable from 0–20m/min.
Electrical system includes phase-sequence and phase-loss protection; the machine won’t start with incorrect wiring until corrected.
