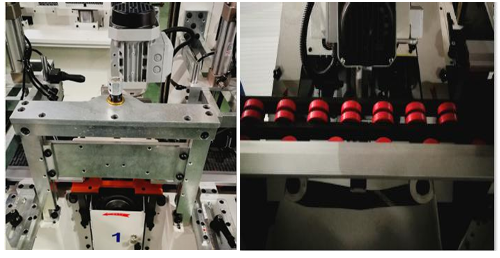

Column system:
The whole machine adopts an integral cast-iron structure. The machining center uses dovetail grooves, ensuring higher precision, better rigidity, and greater stability.

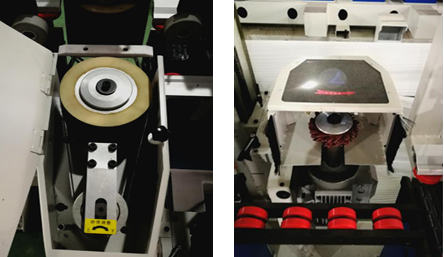

Multi-functional sanding head structure:
Adopts a multi-functional sanding head design, with W being a 4-inch sponge wheel sanding head. Standard sanding width is 100mm, optional 150mm upon request. Sanding belt speed is infinitely adjustable from 0–12m/s; sanding belt length is 840mm. The sanding head is compatible with internationally standard grinding wheels and can be customized according to the shape of the workpiece, enabling all-round, diversified sanding for irregular edges and profiles.

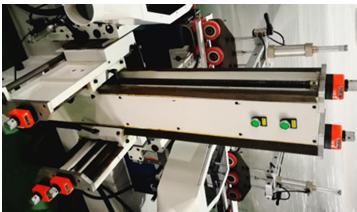

Upgraded short material transfer bridge system:
Adopts double bridge beams and double conveying wheels, allowing smooth and stable transfer of strips and boards from a minimum of 2.5cm to a maximum of 20cm. In addition, an upgraded bridge transfer structure can convey materials as short as 30cm.

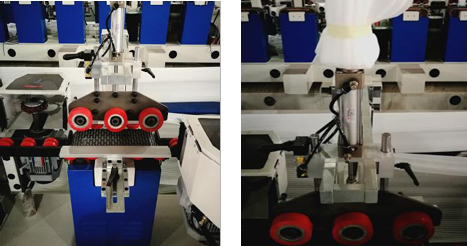

Pneumatic pressing structure:
Equipped with a pneumatic cylinder pressing device, replacing the traditional manual adjustment method, significantly reducing labor and shortening adjustment time. The extended pressing wheel structure ensures stability when transferring strips of different sizes.
Model: GT-MMZ-S2W4
Workpiece width: 2.5–200mm
Maximum thickness: 80mm
Minimum length: 300mm
Feeding speed: 5–32m/min (adjustable by inverter)
Conveyor motor: 380V 50Hz 4KW 1400 rpm
Auxiliary drive: Can transfer workpiece of 280mm
Sanding head unit / Automatic forward & backward / Automatic compensation function
Sanding belt size (circumference × width): 840 × 100mm
Main sanding motor: 380V 50Hz 2.2KW 1430 rpm
Sponge wheel size (outer × inner × height): 180 × 25.4 × 102mm
Dust outlet diameter: Φ100mm
Machine specifications:
Working power supply: 380V 50Hz
Air pressure: 0.6–0.8MPa

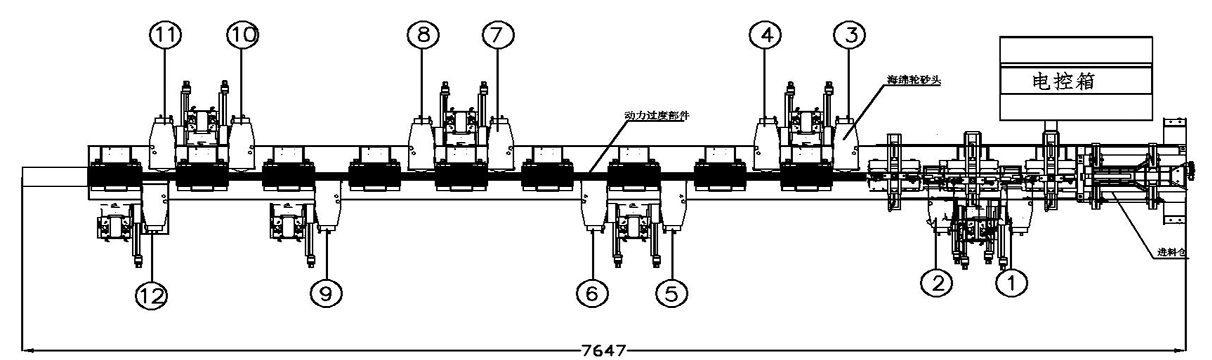

Overall dimensions (L × W × H): 7647 × 1300 × 1500mm
