► Characteristic
•T-shaped table top realizes left and right two station processing; It can also realize the whole table processing, and process 4 workpieces at one time;
•The CNC tenon machine with single cantilever structure has high efficiency in grooving and drilling solid wood, wood-based panel or similar materials;
•It adopts double row spindle, multi head and multi station, high-speed continuous milling. In terms of clamping, while processing a group of workpieces, other workpieces are loaded and unloaded, uninterrupted production, and the efficiency is greatly improved.
•Point to point programming mode input can be selected, and humanized tool setting design can automatically generate processing program without programming.
•NC input and output, a group of workpieces are processed at one time to ensure
.png)
the completion of high-quality and high-precision workpieces.
•It is easy to learn and use, reduces the use cost of the equipment manually, and makes the operation easier.
•For the surface of cabinets, dining table vertical water straight-line parts, dining chair rear leg parts, multi process one-time drilling
Slotting processing technology, while maximizing processing efficiency;
•It is suitable for tenon and groove of different shapes and specifications. Strong practicability, especially for multi tenon and groove and
The space between tenon and groove is small, and the processing of special-shaped workpieces with different length and depth of tenon and groove of the same workpiece has significant advantages;
► Machine infrastructure
- stable and shock-absorbing integral welded fuselage
Welding: the solid base and cross beam are constructed by high rigid square welding, tempered at 600 ℃ and treated with internal stress elimination, which ensures the best structural rigidity and stability of the machine, and is firm and durable and not easy to deform. Maintain good mechanical accuracy and stability and accuracy during rapid movement
Processing: imported five sided gantry machining center, one-time milling, tapping and drilling, reliable and precise quality.

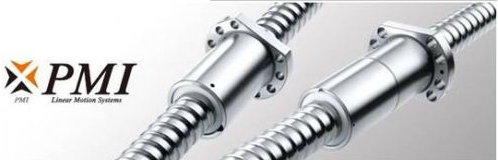

- Taiwan precision ball screw is used for x-axis, Z-axis and y-axis, and the bearing of the screw adopts the special angular contact ball bearing for the ball screw (back-to-back installation)
Advantages of ball screw transmission: high transmission efficiency, high precision and low noise.
► Working stroke:
①（Xaxis）trip：110mm(Effective machining length)
②（Yaxis）trip：2000mm(Effective width of blocking point clamping)
③（Zaxis）trip：250mm(Effective machining depth 50mm)
running speed：
Vector velocity ：15m / min
X-axis ：30m / min
Y-axis ：30m / min
Z-axis ：20m / min
centralized connection module is used to connect with the customer's site

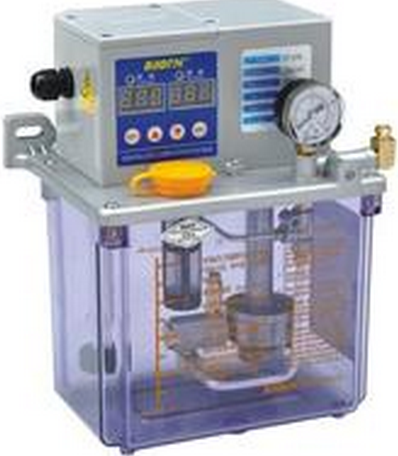

All driving mechanisms and linear guide rails (x-axis, Y-axis and Z-axis) are lubricated by automatic lubrication system;
There is no need to add oil manually. All lubricating parts are lubricated regularly and quantitatively, which is more convenient for maintenance.
► Working parameters
|
Working voltage |
380V×3P |
|
Power supply |
380V/50HZ |
|
Total power consumption |
38KW |
|
Compressed air pressure |
6bar |
|
Use gas |
12MM |
|
Cable |
6m² |
|
Number of suction ports |
6＂×2 |
|
Overall dimension of installation |
3600L×2400W×2100H（Company mm） |
|
Total machine mass |
About 2.8T |

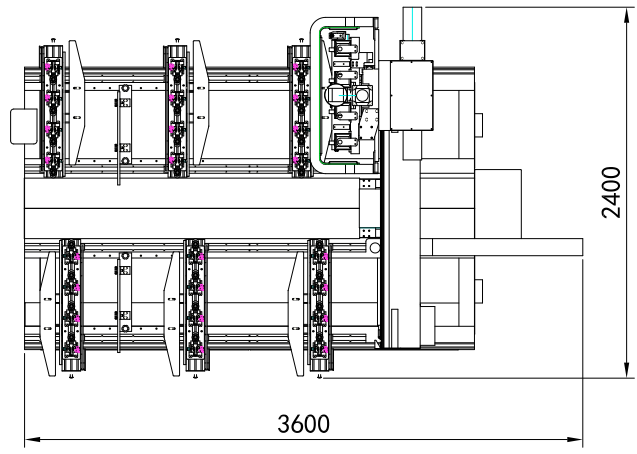

Installation layout dimension drawing
- Compressed air line, radius 3 / 4 inch, air pressure 7 bar
Machine configuration

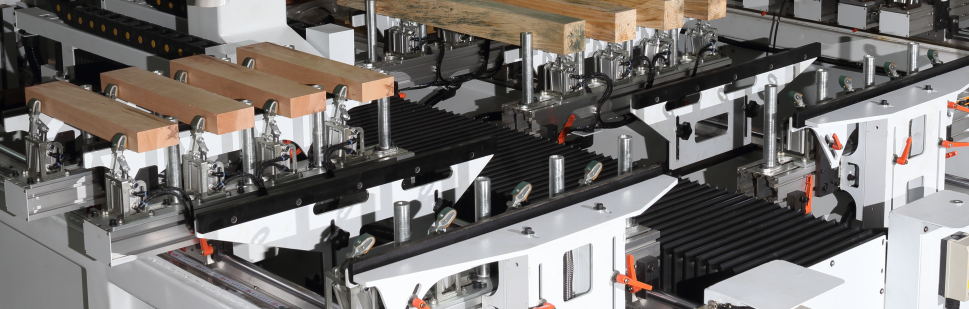

- Workbench configuration
- Working area: divided into two areas
-Clip: 6 sets of clip seats are divided into left and right processing areas
-Baffle: 2 groups
-Workpiece support plate: 2 groups
-The x-axis of the clamping beam adopts a linear guide rail structure, which can be shifted and locked manually;

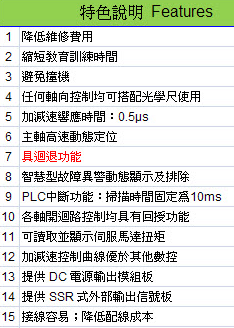

► TAIWAN HUST Control system
Based on international standard CNC programming specification and standard peripheral communication module
► Equipment installation and use environment
– places free of water droplets, steam, oily dust, electromagnetic noise interference and away from sources and heat sources;
– the relative temperature of the operating environment is less than 80%, no condensation, and the temperature is 5 ℃ - 40 ℃ If the ambient temperature exceeds 40 ℃, please go to a well ventilated place;
– the working voltage is three-phase AC380V, 50 / 60Hz, and the allowable voltage range is 380V ± 10%, 50Hz + 1Hz. If the actual voltage exceeds the allowable voltage range, please provide voltage stabilizing equipment, which shall be provided by the demander;
– due to the demand of equipment placement site, it cannot be installed on the soft ground, and it is recommended to use cement ground;
– the electric control cabinet integrates the operation terminal and the refrigeration device of the electric control cabinet;
– equipment no-load noise ≤ 75db (a)
– voltage stabilizing device matching with the power of the whole equipment shall be equipped.
► Safety protection facilities:
-Safety allocation of operators:

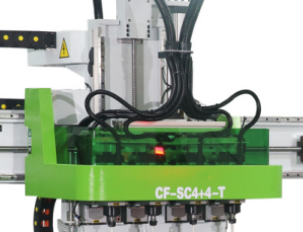

-Machining spindle safety shield

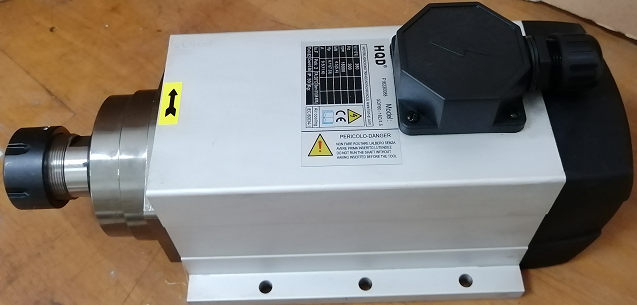

► Machining spindle:
2）Cutter shaft spacing：200mm
3）Cutter shaft speed：18000RPM/min
4）Main cutter shaft clamping nozzle：①ER32 3.7KW ②ER25 2.2KW
5）Maximum tool outer diameter：①ER32-￠D20mm ② ER25-￠D16mm
► List of processed workpieces
