PRODUCTION LINE PALLET

PRODUCTION LINE PALLET
Product’s name PRODUCTION LINE PALLET
Product code LINE GT
Price Contact
Description

► Currently, wooden pallets are commonly used in companies, manufacturing plants, small retail businesses, supermarkets, department stores, etc., are commonly used everywhere.

Product details

- Advantages of wooden pallets:

1. Cheap price, diverse designs, high bearing capacity.
2. Suitable for both transportation and warehousing.
3. The design of wooden pallets can be in the style of a puzzle (stringer) or in the style of hunchback (block), which can be lifted in 4 flexible directions.

- Why use wooden pallets?
1. Portability
2. Toughness and toughness
3. Limit termites of goods
4. Light weight, compact size
5. Recyclable

- USES OF PALLET:
1. Pallets help limit the moldy goods caused by direct contact with the ground
2. Secure goods so that transport equipment such as forklifts can easily handle large quantities
3. Avoid the case of damage, broken goods during the move
4. Easy to arrange and save warehouse space.
5. Free up labor and increase working productivity many times.
6. Can be loaded and used into other finished products such as furniture, wooden crates, etc.


- WOODEN PALLET PRODUCTION PROCESS:

1. Import of wood (Input material)

2. Sawing wood into gas (Cutting wooden pallets)

3. Drying, disinfecting, eliminating termites

4. Wood planks

5. Cut the ends of the wooden stick

6. Wooden stick tea

7. Finished product packing

8. Finished product storage



- MODERN WOOD PALLET PRODUCTION LINE INCLUDES THE FOLLOWING TYPES OF MACHINERY:

1. GT-SF6060 WOOD BLOCK CUTTER

2. GT-SF6023 AUTOMATIC WOOD DOUBLE END TRIM SAW

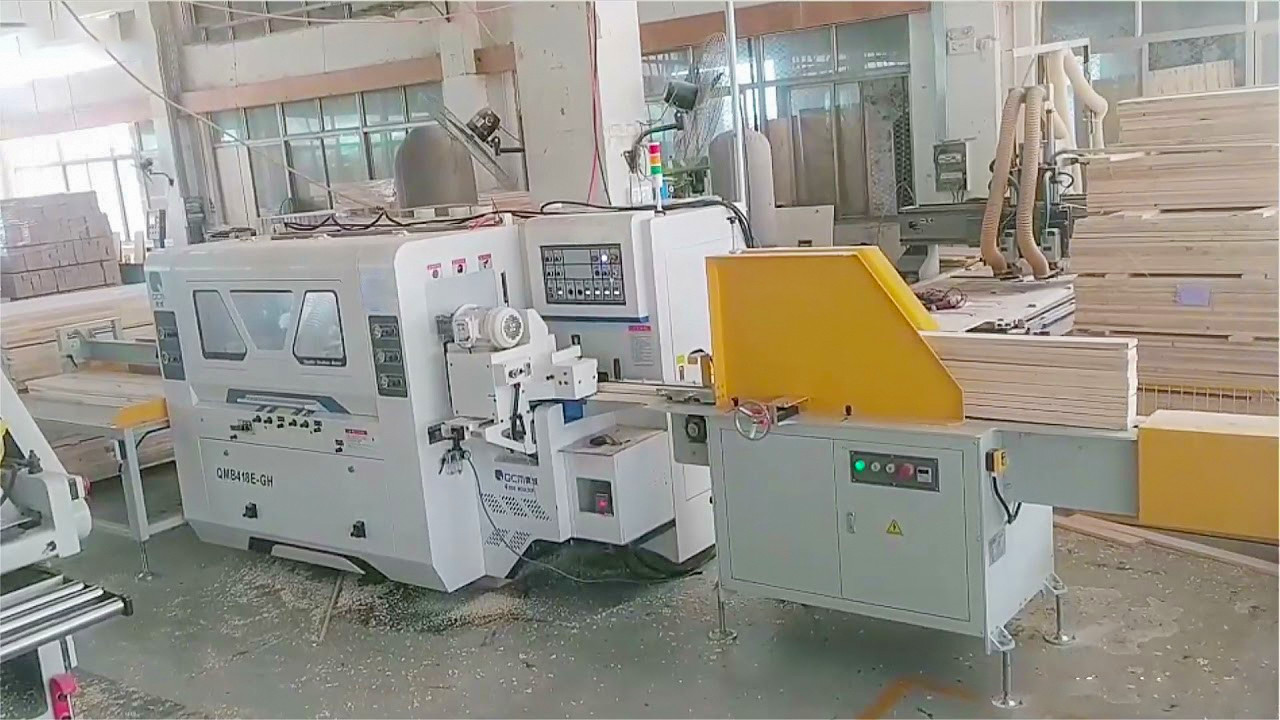

3. GT-SF8512 SHORT WOOD AUTOMATIC FEEDING TABLE FOR FOUR SIDES MOULDER

- 4-sided planer with high speed for short workpieces, with automatic, modern and high-precision table-feeding system.

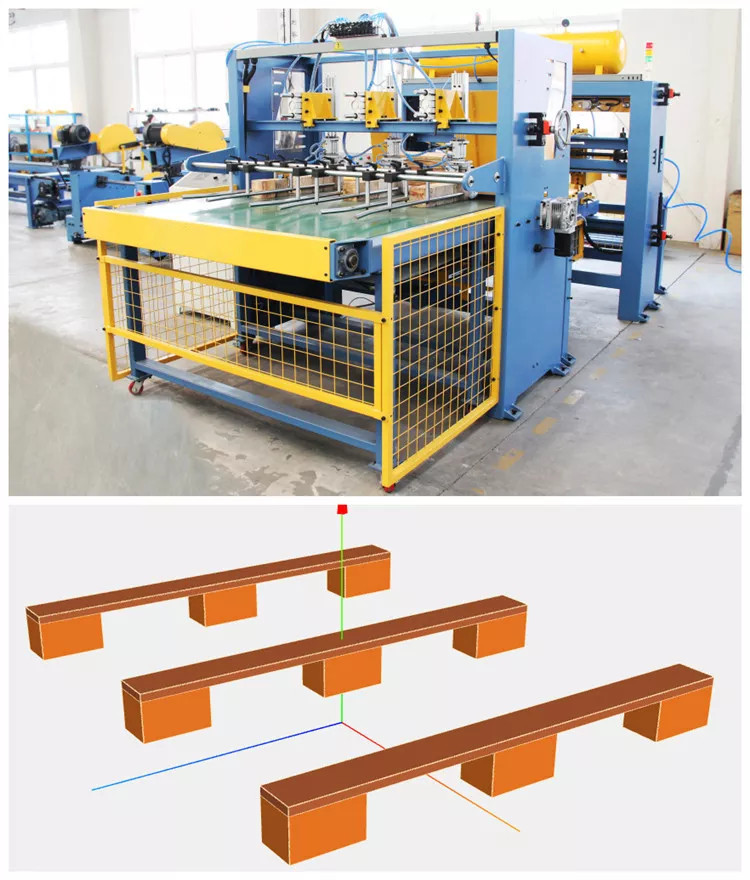

4. GT-SF9022 AUTOMATIC PALLET LEG NAILER

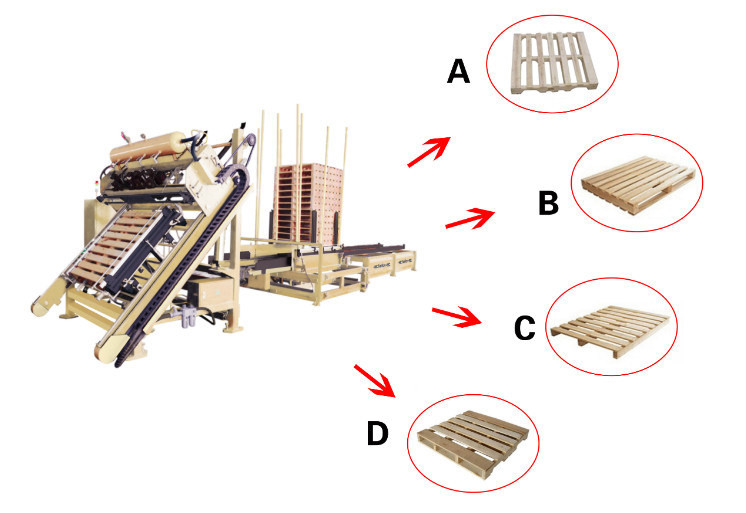

5. GT-SF9010 AUTOMATIC STRINGER PALLET NAILING MACHINE



Specifications

Pallet length 600-1900 mm
Pallet width 600-1500 mm
Pallet hight 70-130 mm
System power 2+1.5 kw
System working dimension 11.7 x 2.5 x 3m
Air pressure 7-8 kg/cm2
Standard nailing gun N75
Touching screen PLC Siemens

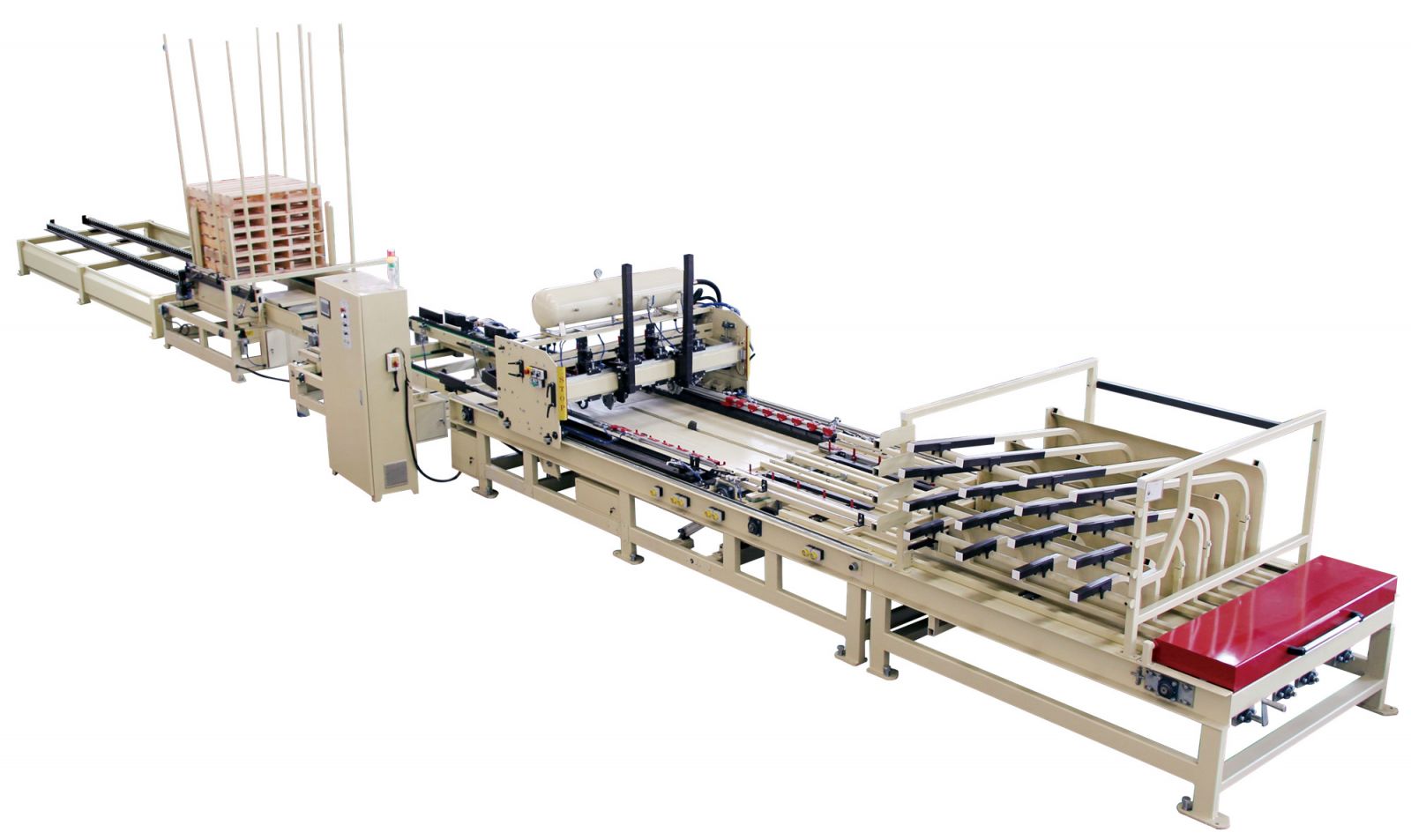

6. GT-SF9025 SEMI-AUTO VERTICAL STRINGER PALLET NAILING MACHINE



Model

GT-SF9025

Pallet type

Stringer pallet

Pallet length

700-1300mm

Pallet width

700-1300mm

Pallet height

90-170mm

Stringer width

35-80mm

Min. Distance between any 2 face deck

20mm

Nailing gun distance

Min. 135mm

Nail distribution

Straight line

Stringer quantity

2-4pc

Productivity

300-500pc/8h

Nailing gun

4pc N70

1-3pcs nails adjustable, photoelectricity testing for the nailing position.

Coil nails

2000-3000 nails/coil

Nail diameter 2.3-2.8mm, length 45-70mm

Stacking table

Pneumatic table, max. Loading weight 700kg.

Out-feeding table

4m length without power

Total power

3kw

Voltage

380v 50hz 3phase

Air pressure

0.6-85 MPa

Electric components

Schneider brand

Pneumatic components

Taiwan Airtac brand

Sensor

Germany IFM

Dynamical

Japan Yaskawa Servo-motor

Machine working size

10*3.2*3.7m

Machine weight

3700kg

SYSTEM ADVANTAGES:
► Complete automatic, accurate to ensure quality for each stage.
►Offering wooden pallets in large quantities and minimizing errors in production
► Finished wooden pallets are nailed (closed) made of wooden slats. Solid quality construction, no damage in transit
► The equipment and machines all work seamlessly, with high durability, maximum labor saving
► The system is periodically checked for safety in all aspects before handing over to customers.
For more information, please contact Email: Readywl@gmail.com or Wechat ID: goodtechcn

► VIDEO PRODUCTION:
