① The first workstation uses a 400-type triangular sanding rack, powered by a 2.2kW motor running at 1430 rpm, 380V, 50Hz, with variable frequency speed control.
② The second and third workstations feature multifunctional sanding heads equipped with sanding belts, enabling high-volume and smooth disc edge sanding. The sanding heads support automatic compensation and forward/backward movement.
③ The fourth workstation uses a polishing head with a brown brush wheel to remove burrs and enhance surface smoothness. Each sanding head is independently controlled via variable frequency. Material feeding is handled by an automatic feeding bin.
④ The material-guiding wheel uses automatic pulse sensing combined with electromechanical coordination for rotational sanding.

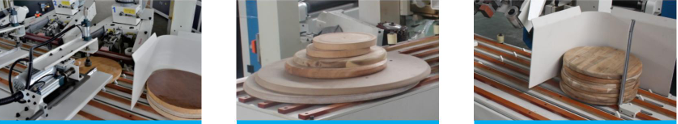

⑤ Sanding is performed via rotating discs, processing 4–6 pieces per minute.
⑥ The entire machine is servo motor-controlled. Product diameter can be input via the control screen for automatic positioning and adjustment—no manual calibration needed. Sanding head positions are fixed, and all heads support automatic lateral movement.
Disc Sanding Machine – 100%
Brand: GOODTEK – Origin: China
Model: MYP-S1W3
Maximum workpiece width: 350 – 800 mm
Maximum workpiece depth: 80 mm
Working table height: 850 mm
Feeding speed: 0 – 12 m/min
Main sanding frame motor: 2.2kW × 2, 1400 rpm, 50Hz
Oscillating frame motor: 0.12kW × 1
Sponge sanding head motor: 1.5kW × 1, 1400 rpm, 50Hz
Operating voltage: 380V, 50Hz
Total power: 12.5kW
Dust extraction port: Ø100 mm
Machine dimensions: 5500 × 2000 × 1500 mm
Machine weight: 2500 Kg
